Model

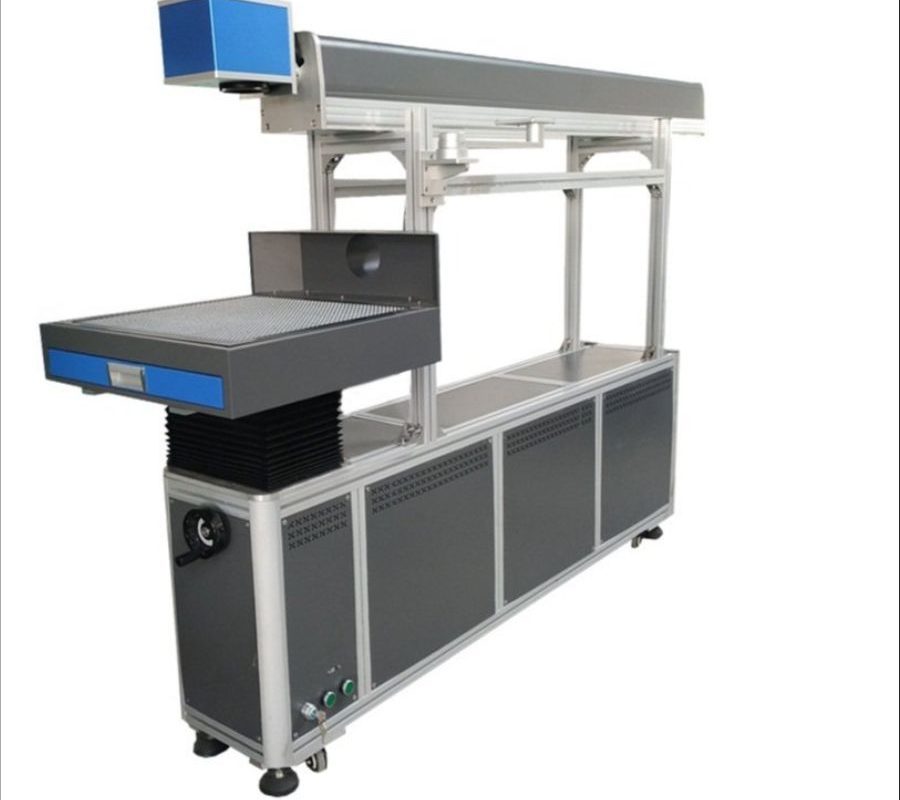

CMX Galvo 2d/3d

Laser Type

Co2 Laser

Laser Power

100w/130w/150w

Laser Wavelength

1064nm

Marking Area

300*300mm, 600*600mm, 800*800mm

Marking Depth

1.2mm

Marking Speed

10000mm/s

Min. Line Width

0.012mm

Min. Character

0.15mm

Repeated Precision

±0.003mm

Life -span of Fiber Laser Module

5000 hours

Beam Quality

M2 <1.5

Focus Spot Diameter

0.01mm

Output Power of Laser

10%~100% continuously to be adjusted

System Operation Environment

Windows XP/7/8/10 32/64bits

Temperature of Operation Environment

15 c-35 c

Power Input

220/110v single phase

Power Requirement

400W

Communication Interface

USB

Machine Dimension/after package

2000*850*1360mm

Optional

Rotary Device, Moving Table, other customized Automation
